New energy commercial vehicle

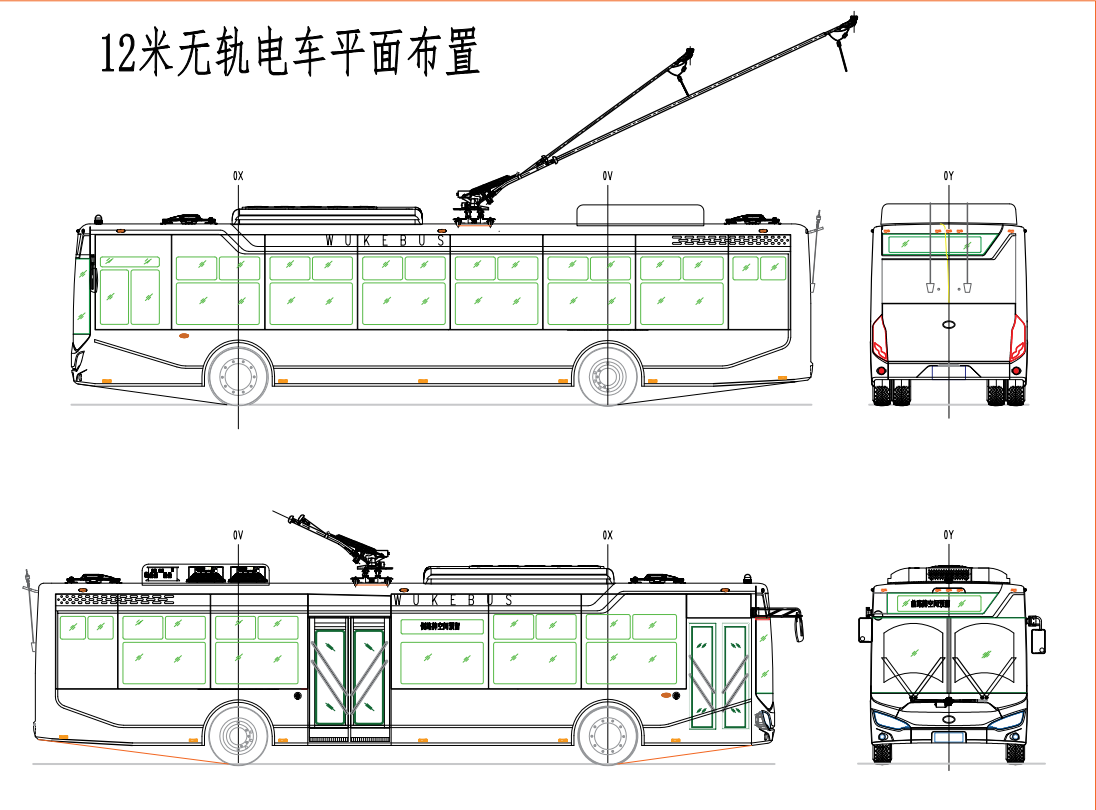

12M Trolley City Bus | |
車型Model |
WH6120GD |
Dimension外形尺寸長*寬*高 |
12000*2550*3750（Included?collector pole 含集電桿） |
Rated passenger準乘人數（人） |
92/23-41 |
Max Speed最高車速（km/h) |
≤69 |
Curb Weight/GVW整備質量/總質量 |
12000/18000 |
Braking制動系統 |
氣壓雙管路/前后盤式 Dual air circuit/ front&rear disc braking |
|
軸距/前/后懸 Wheel base/front overhang/rear overhang |
5980/2700/3320 |
Front/rear track base輪距 前/后 |
2080/1860 |
Min. Ground Clearance最小離地間隙 |
120 |
Min. Turning Diameter最小轉彎直徑 |
≥24 |
Approach/Departure Angle接近/離去角（°） |
8/7 |
Tire輪胎規格 |
275/70R22.5 |
Battery?Type?電池類型 |
Lithium Iron Phosphate磷酸鐵鋰 |
|
Total Voltage of Battery Pack 電池組系統總電壓（V） |
521.64 |
Total Battery Capacity總電量（Kwh) |
90.2Kwh |
Max. Mileage最大續航里程 |
≥150 |
Motor Type電機類型 |
DC permanent magnet motor直流永磁電機 |
|
Motor Rated/Max. Power 電機額定/峰值功率（kW) |
130kw/200kw |
Motor Rated/Max. Torque電機額定/峰值扭矩（Nm) |
Rated額定1100Nm、Max峰值3000Nm、 |
Suspension(front/rear)懸架系統（前/后） |
Air suspension空氣懸架 |
